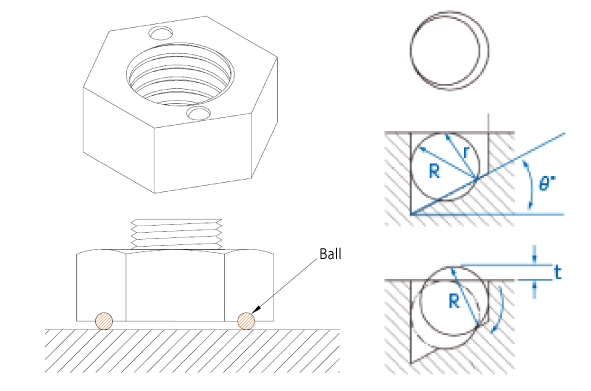

★The angle θ is designed to be larger than the lead angle of the thread

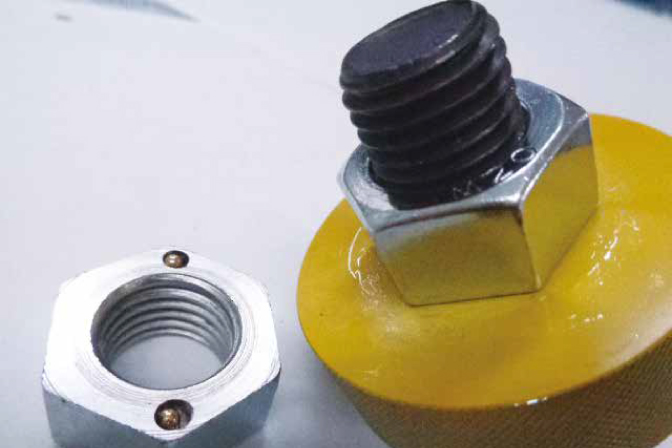

The ball is secured in place with a crimped design to prevent it from falling.
After tightening the Bol’lock nut, the gap between the seat and the surface is zero.
１．When the nut is tightened, the ball in the nut automatically moves to the deepest part of the groove, and the bottom of the nut and the top of the ball gets flush mutually. Accordingly, no gaps are created between the floor and the nut, and the tightening tension remains unaffected.
２．If the nut begins to loosen due to vibration and moves counterclockwise, the ball shifts to the right, activating its wedge function and preventing the nut from rotating (loosening). During this process, there is almost no backlash (i.e. no movement of the nut).
Features and Usage Notes
⑴Don’t need excessive torque: This product leverages the “rotational friction” of the ball, so you don’t need excessive torque to loosen it. It’s designed to loosen with 105–110% of the tightening torque. No special tools are required.
⑵No torque limitations: You can use any fastening tools available to tighten like: manual tools, power tools, or impact wrenches.
⑶Reusable design: the nut can be reused up to around 10 times or more.
Important Notes
If frequent tightening and loosening are required, opt for the Bol’lock Washer to avoid damaging the surface beneath. It incorporates a non-rotation mechanism that ensures the surface remains intact.
Bol’lock washer

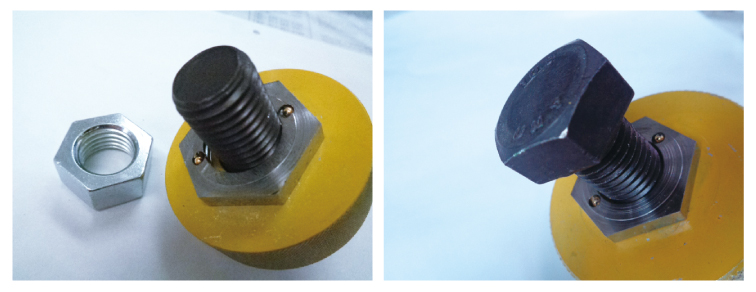

The Bol’lock washer can also be used on the bolt head side.
Dimensions
Important NotesThe nut and washer do not need to be used together; each can be used individually.
★★２ different nuts must be tightened each by the different torques.
◎Same as normal nuts.
◎Same as normal nuts.
4
Protrusion of the bolt required from the floor.
The minimum
A longer bolt required for the double-nut
The minimum
The minimum
5
Convenience in fastening.
Convenient, most easy fastening.
Not convenient, always 2 nuts needed.
Not convenient, cannot seat down the nut onto the floor by hand.
-
6
Possible to use for bolt-heads?
Possible, we have the washer-type, Bol’lock Washer with the same function.
★Not possible.
★Not possible.
★possible.
Cases
vibrating machine

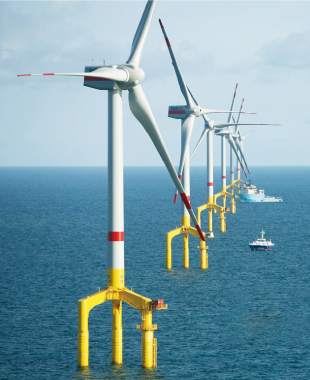

offshore wind energy

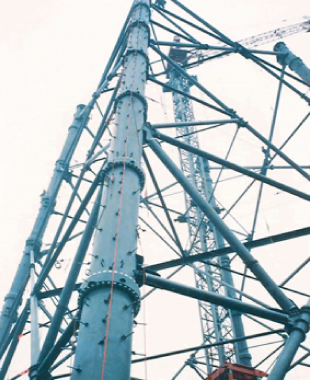

power transmission tower
Did you know about....? Anti-loosening measures must also be applied to the bolt head.
Even if an anti-loosening nut is used, the bolt will inevitably loosen if the bolt head rotates along with it.

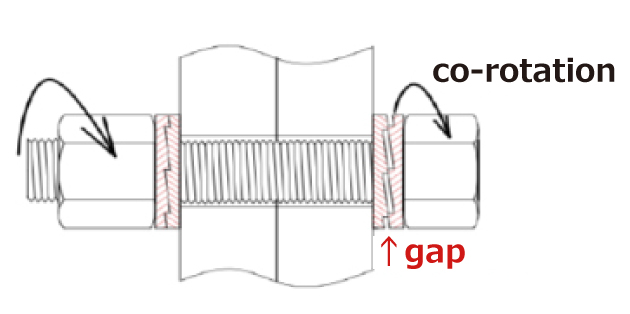

In case of Wedge-lock Washer
When the nut is tightened, the bolt head rotates along with it, causing a gap to form on the bolt head side. This gap can lead to loosening when vibrations occur. ☆The manufacturer does not have a proposed solution.

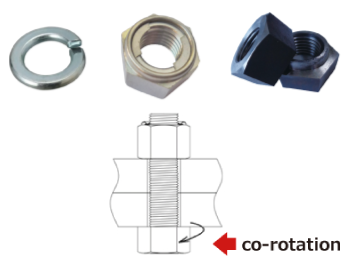

In case of Spring washer, Lock nut and Double-lock Nut
No measures are taken against the bolt heads, so the bolts loosen with vibration. ☆The manufacturer does not have a proposed solution.
